Fanatec®

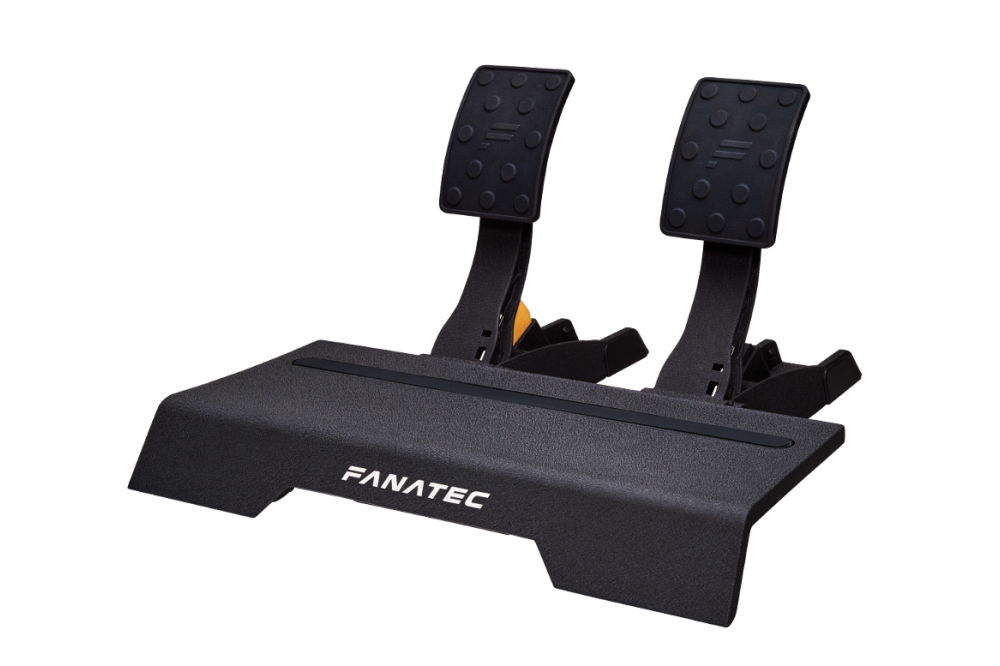

Fanatec® CSL ELITE 2 Pedal Set

PART NUMBER:

$105.00 USD
$105.00 USD
Sale Sold out
Shipping calculated at checkout.
The product is out of stock

Premium Materials.

Even at the mid-range price you get the same technology and materials as used in high-end pedals.
Solid, full-metal design.

SOLID, FULL-METAL DESIGN.

The high quality full-metal Aluminium design ensures long lasting durability, improves resistance and delivers the pedals impressive stability.

12-BIT RESOLUTION.

The new electronics feature potentiometer sensors with metal gears on the two pedal arms that provide the same 12-bit resolution as the ClubSport V3 pedals.
12-bit resolution.

Fully adjustable.

The new, innovative design provides various tuning and setup options.
Free layout.

FREE LAYOUT.

Each pedals (gas, brake, optional clutch) horizontal position on the heelrest is individually adjustable, and can even be separately mounted onto your customized cockpit without the heelrest plate.

FREE CHOICE OF PEDAL PLATE SURFACE.

The detachable rubber pads on the pedals give you the choice between grip or a slick surface.
Free choice of pedal plate surface.

Optional Loadcell Kit.

The CSL Elite Pedals can be extended with the optional CSL Elite Pedals Loadcell Kit to add a loadcell brake for extremely precise braking by pressure rather than travel.
Optional clutch pedal.

OPTIONAL CLUTCH PEDAL.

The optional CSL Elite Pedals Loadcell Kit adds a third pedal, the loadcell brake unit, and uses the former brake unit as clutch pedal with a new limiter pad.

MAKE YOUR PEDALS PERFECT.

The optional loadcell brake pedal unit comes with a high durable loadcell integration up to 90 kg pressure. The PCBA exchange unit adds USB connectivity and a Handbrake port.
Make your pedals perfect.

FEATURES

  • Plug and play pedals with throttle and brake pedal unit
  • Pedal units and heel rest made from solid Aluminum
  • Brake pedal with metal spring and PU foam damper for pressure braking simulation and more realism
  • Extra long pedals for more realism and comfort
  • Adjustable horizontal distance between pedal units, allows asynchronous setup
  • Ability to easily remove pedals from heelrest and install them together with the electronics in cockpits or stands seperately
  • 12bit resolution potentiometers
  • Heel rest offers large rest surface
  • Detachable rubber pedal covers offer good grip on soft surface
  • Direct connection to Fanatec Wheel Bases and Racing Wheels
  • USB connection to PC only via ClubSport USB Adapter (optional)
  • Upgradable by CSL Elite Pedals Loadcell Kit (optional)

COMPATIBILITY

Platforms

  • PC: The CSL Elite Pedals must be connected directly to the Wheel Base and do not come with an USB connector. For USB functionality you need to use a ClubSport USB Adapter or upgrade with the CSL Elite Pedals Loadcell Kit that comes with a PCBA replace and adds a USB connector as well as a handprake port. For details please see the CSL Elite Pedals Loadcell Kit.
  • Consoles: This pedal set can be used on gaming consoles, if connected through a Fanatec Wheel Base / Racing Wheel. Please check the information on the product page of the Fanatec product through which they will be connected to the console. It will not work on consoles using a ClubSport USB Adapter.

Peripherals

Compatible to any Fanatec Wheel Base or Fanatec Racing Wheel with RJ12 Pedals connector. To connect Fanatec Wheels with PS/2 Pedal Socket, you need the additional PS/2 to RJ12 cable.

SPECIAL NOTES

  • If you want to use this product standalone you need to purchase additional products (see compatibility).
  • Slight colour variations may occur between CSL Elite Pedals and CSL Elite Pedals Loadcell Kit.
  • Max resolution depending on the connection:
    • through CSW B V1 / CSW B V2 / CS WB V2.5 / CSL E WB / CSL E RW PS4: 12 bit (4096 values) on both axes
    • through ClubSport USB Adapter (not included, PC only): 8 bit (256 values) on both axes

PACKAGING DETAILS

  • Dimensions (L x W x H)47cm x 31cm x 18cm
  • Weight3.3kg
  • Volume weight5.25kg

WHATS INCLUDED

  • Throttle pedal unit
  • Brake pedal unit with PU foam damper
  • Heel rest
  • 1x Wheel Base connection cable RJ12/RJ12 (~3m)
  • 2x rubber pedal cover (detachable)
  • 1x Wrench 13 mm (cropped)
  • 1x Allen Key 6 mm
  • 1x Quick Guide
  • Mounting screws

TECHNICAL SPECIFICATIONS

  • PlatformPC Ready, PS4 Ready, XBox One Ready
  • Adjustable pedal angleNo
  • HardmountBottom
  • Color kitNo
  • Max bits of resolution12 (4096) on all axes
  • USB ConnectivityWith optional adapter
  • Adjustable brake stiffness and travelNo
  • SensorsPotentiometer
  • Pedal padsAluminium, Rubber
  • Vertically adjustableNo
  • Horizontally adjustableYes
  • DamperNo
  • Throttle vibrationNo
  • ABS brake vibrationNo
  • Clutch pedalNo
  • Adjustable brake sensitivityNo
  • Load cell brakeOptional
  • Main materialDiecast Aluminium
