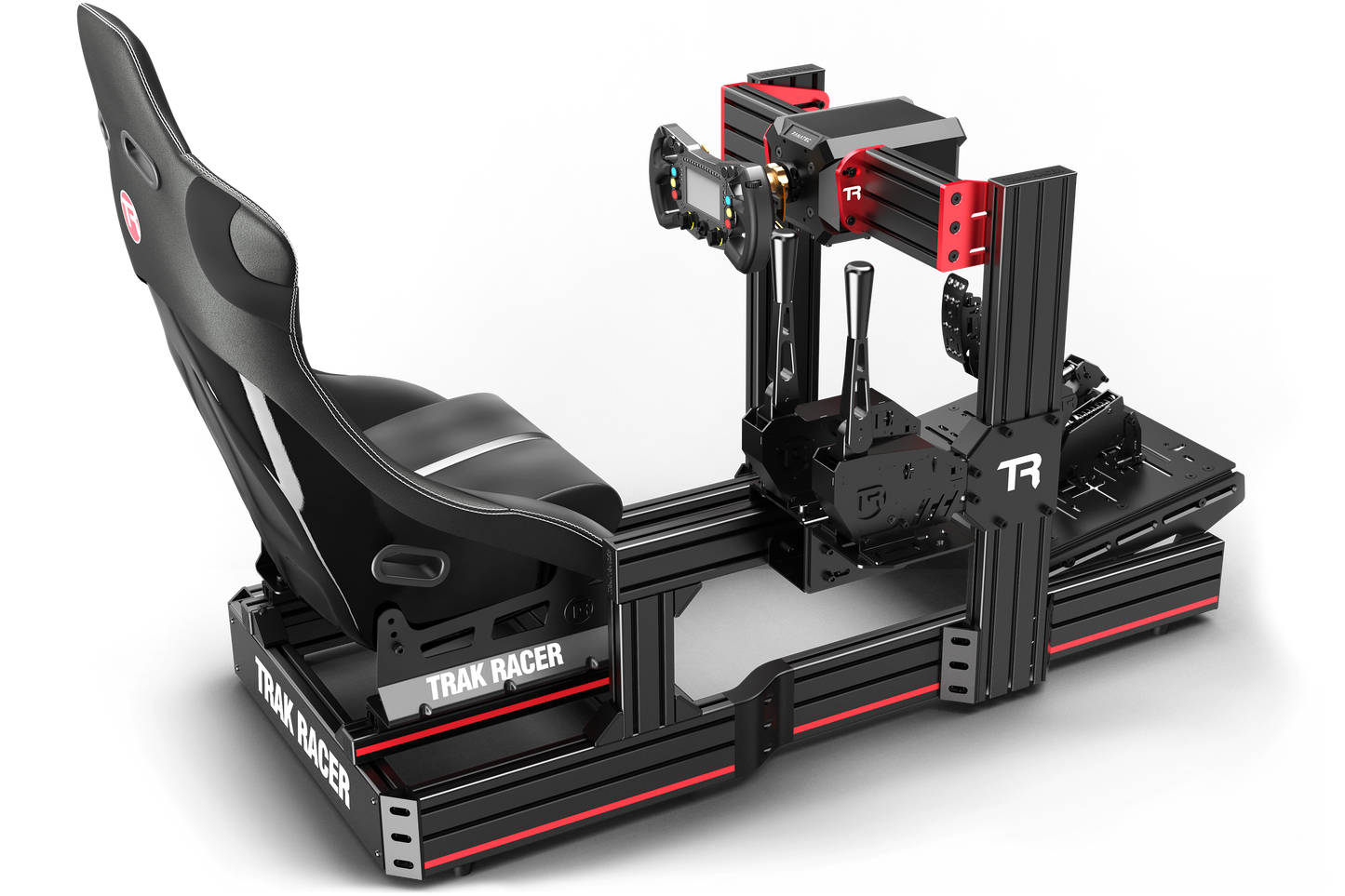

Trak Racer® TR-One Fully Adjustable Direct Fit Wheel Mount for FANATEC PODIUM DD1 DD2 CSL DD
TR One Side-Mounted Fully Adjustable Fanatec Direct Drive Force Feedback Wheel Mount for Fanatec Podium DD1/DD2, DD PRO and CSL DD
About the TR One Wheel Mounting System
The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.
The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!
Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates
Material: Anodised Red Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel
Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.
Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).
Total Wheel Mount Width (with Wheelbase added): 580mm/22.83"
Compatible Wheel Bases:
- Fanatec Podium DD1/DD2
- Fanatec DD PRO
- Fanatec CSL DD
- Side Plate Thickness/Material: 2 x 10mm/Aluminium - Anodised Red
- Aluminium Profile Size/Length: 2 x 180mm 40x120mm Extruded Aluminum Profile
- Internal Plate Thickness/Material (without brackets): 2 x 10mm/Aluminium - Anodised Red
- Internal Fanatec Base Plate: 4 x 5mm (2 each side for CSL DD and 1 each side for Podium - Included)
5 Year Warranty
