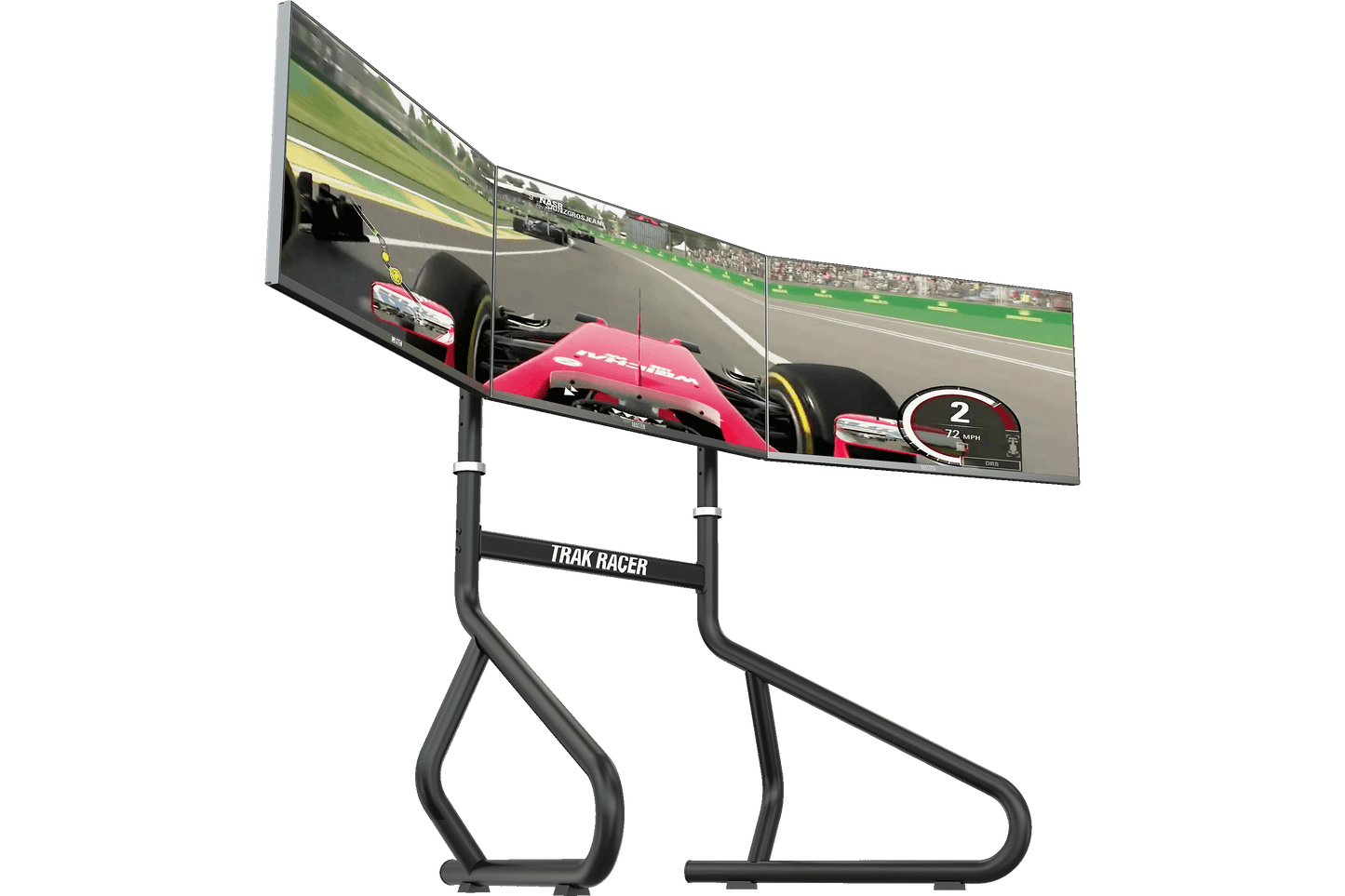

Trak Racer® TR8 Pro Racing Simulator

Trak Racer TR8 Pro Upgrades

By gathering feedback from the most popular rig on the market, the TR8 we have released the updated TR8 Pro which has the following improvements and improvements to packaging to ensure the item reaches you as it should.

Strengthened Pedal Plate - The TR8 Pro has been improved to withstand up to 180kgs of braking for force without flex. We have also added pre-drilled mounting points for more new pedal sets on the market and the slide function on the TR8 remains - so you can get those pedals exactly where you need them!

More Adjustable and Strengthened Wheel Mount - We have added a wheel mount slider to the TR8 Pro to give you 130mm forward and back adjustment with the use of proprietary ball-bearing-assisted sliders. We have also strengthened the 2" tube to withstand up to 35nm direct drive steering wheel torque without flex.

More Adjustable and Strengthened Left or Right Side Shifter Mount - The shifter mount has been strengthened by increasing the thickness of the mount and also the plate on the simulator that it mounts to. We have even added mounting points to enable the shifter mount to move forwards and back.

Complete Overhaul of Integrated Monitor Stand (optional) - The integrated monitor stand will become optional and now has height adjustment for the monitor, and also forward and back adjustment. The complete design has been improved to provide a more rock-solid mount.

Trak Racer TR8 Pro Overview

Direct Drive & Belt Drive Wheel Ready!
Compatible with PC and Console
Compatible with all popular steering wheels, pedals, and shifters on the market
Stiffened Dual-Supported NO FLEX Wheel Shaft
Integrated Single Monitor Stand to support displays up to 70” (Optional)
Superior build quality, stability, and comfort
Improved Left and Right-Side Gear Shift mount with pre-drilled mounting points and slide
Reinforced Angle and Distance Adjustable Pedal Mount, suitable for all the big brands!
Designed and Engineered in Australia


Frame/Chassis Features

Solid framework with no obstruction between your legs and no wheel side supports required
580mm wide for firm stance when racing
Low ground clearance with hard wood rubber floor protectors
Finished in 2"(51mm) high-grade steel tubing


Integrated Single Monitor Stand Features (Optional)

New Solid Mounting with Distance and Height Adjustment
VESA Mounting Bracket
Optional - Triple Monitor Mount (SKU TR-TR8-M)
Optional - Large VESA Extension Mounts (SKU TR-80)


Adjustable Wheel Mount Features

Unique and Rigid Distance Slider with Angle Adjustment
Solid construction to support Direct Drive Force Feedback Systems up to 35nm of Torque
Pre-drilled mounting points for all major brand wheels
3-Point Adjustment allows you to adjust the height and angle of the mount
*Patent design


Adjustable Pedal Mount Features

Fully adjustable bracket for both angle slide
Forward and Back Distance Slider
Welded steel frame on the underside of the mount for added strength
Pre-drilled mounting points for all major brand pedals including


Reinforced Left or Right-Side Mounting Gear Shift Mount Features

The Distance Slider mount allows you to adjust the position of the mount to the most ergonomic position for you
Angle Adjustment enabled you to face the shift mount inwards, flat, and outwards for customized adjustability
Pre-drilled mounting points for all major brand shifters including Thrustmaster TSS, Fanatec Clubsport, and more
Optional - Integrated Handbrake Mount


What's Included

2" Industrial Strength Iron Chassis
Fully Adjustable Angle Pedal Mount with Distance Slider
Premium Seat Sliders
Left/Right Mounting Gear Shifter
Angle, Slide, and Height Adjustable Wheel Mount
Bucket Seat Mounting Brackets
Tools and screws included
*Electronics, Seat and Monitor Stand are not included
