Trak Racer® TR80 LITE Racing Simulator

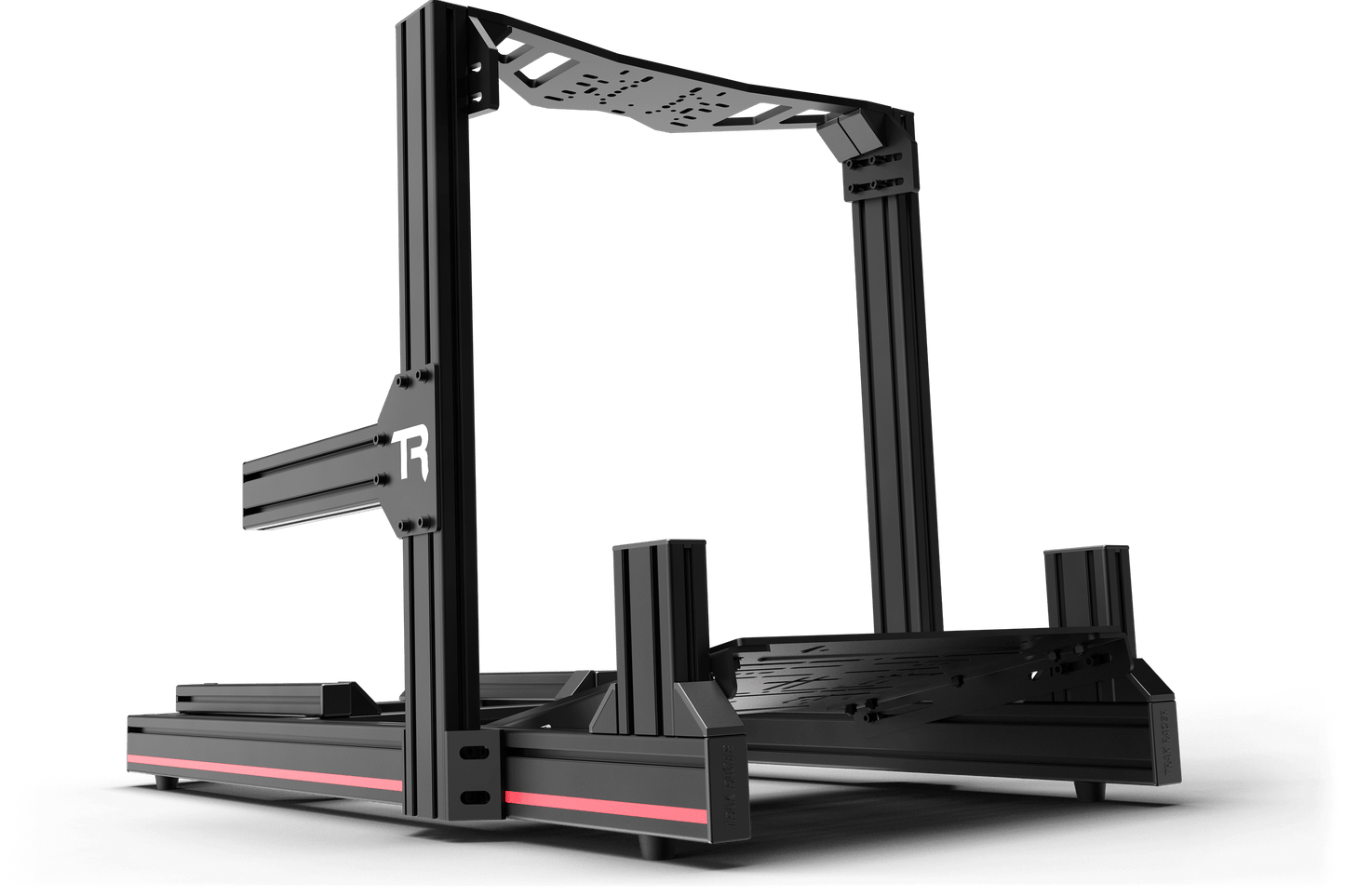

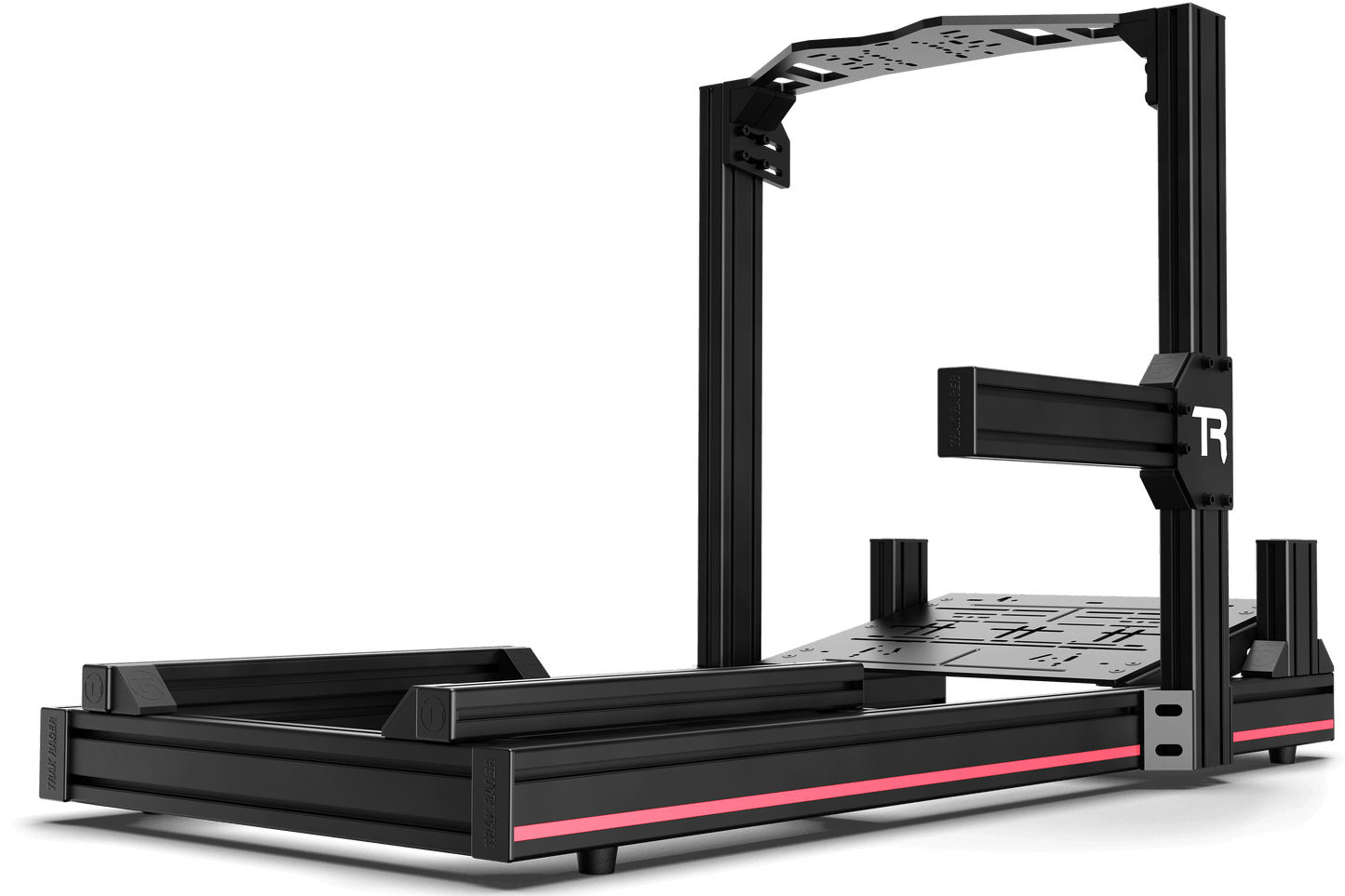

The TR80-LITE has been designed with experience gained since Trak Racer started in 2008. The base structure is an 80 × 40mm high-end aluminium T-Slot extruded profile, anodized in black. Your choice of wheel mount will be supported by an 80 × 40mm high-end aluminium T-Slot extruded profile, also anodized in black.

Heavy-duty anodized black 90-degree brackets connect the frame and laser cut carbon steel plates allow you to attach your peripherals. The TR80-LITE is Direct Drive & Belt Drive Wheel-Ready, Pre-drilled for all popular steering wheels, pedals and shifters on the market, comes with a Stiffened Wheel Mount for No-Flex Racing. The Trak Racer accessory range is also constantly evolving to offer over 30 add-on options including speaker mounts, monitor stands, bass shaker mounts, keyboard mounts and more. Designed and Engineered in Australia.

Trak Racer TR80-LITE comes with an Unbeatable 5 Year Warranty!

Key Benefits of TR80-LITE:

Basic Pre-Drilled Pedal Mount
Side-Mounted Wheel Uprights with 80 x 40mm Heavy Duty Brackets
Thicker and Stronger Aluminium Profile Walls
Important: Due to the height of the wheel mount uprights, front-facing mounts including the TR-One Wheel Mount System are NOT compatible with the TR80-LITE

Upgrade to TR80 MK5 for:

Upgraded Formula/GT Hybrid Pedal Plate
Seat Slider Rails Included
Universal Gear Shift Mount Included
780mm Taller wheel mount uprights (compared to 660mm on TR80-LITE) which allows you to add the TR-One Wheel Mounting System

What's Included

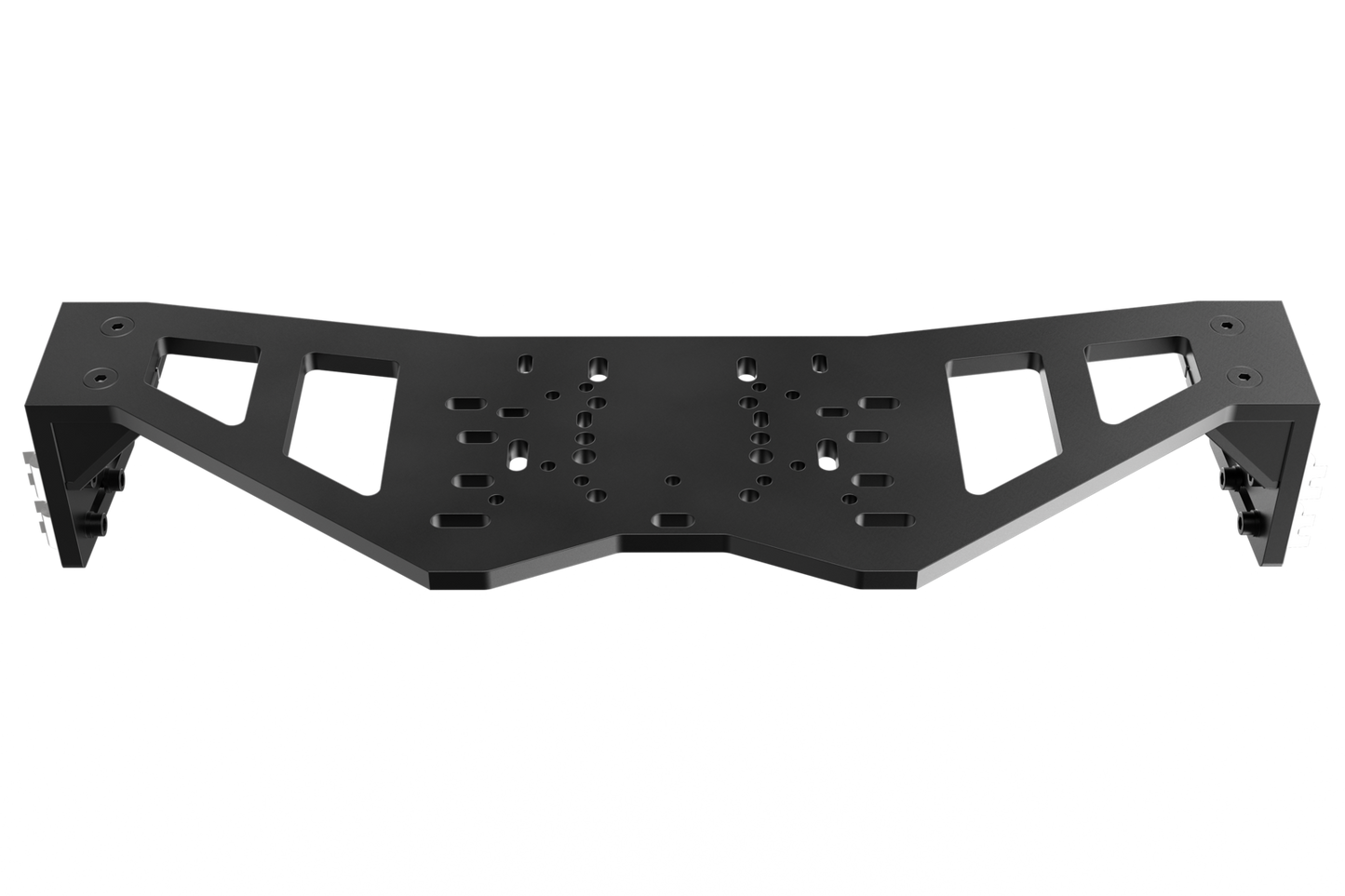

Wheel Mount - Heavy-duty Wheel Plate (SKU: TR80-WMPLATE)
Pre-Drilled Pedal Plate
BONUS Rubber Feet to protect floors
Set of 10 Cable Ties
Red Coloured Strips
80mm x 40mm Black Anodized Aluminium Chassis
80mm x 40mm Black Anodized Aluminium Wheel Supports
80mm x 40mm Black Anodized Aluminium Shifter Support
All Mounting Screws, Brackets and Fixtures included
Assembly Tool Kit Included

Frame/Chassis Features

Constructed from high quality extruded aluminium
580mm wide and 1,200mm long for firm stance when racing
Low ground clearance with hardwood rubber floor protectors
Finished in black anodized high-quality aluminium

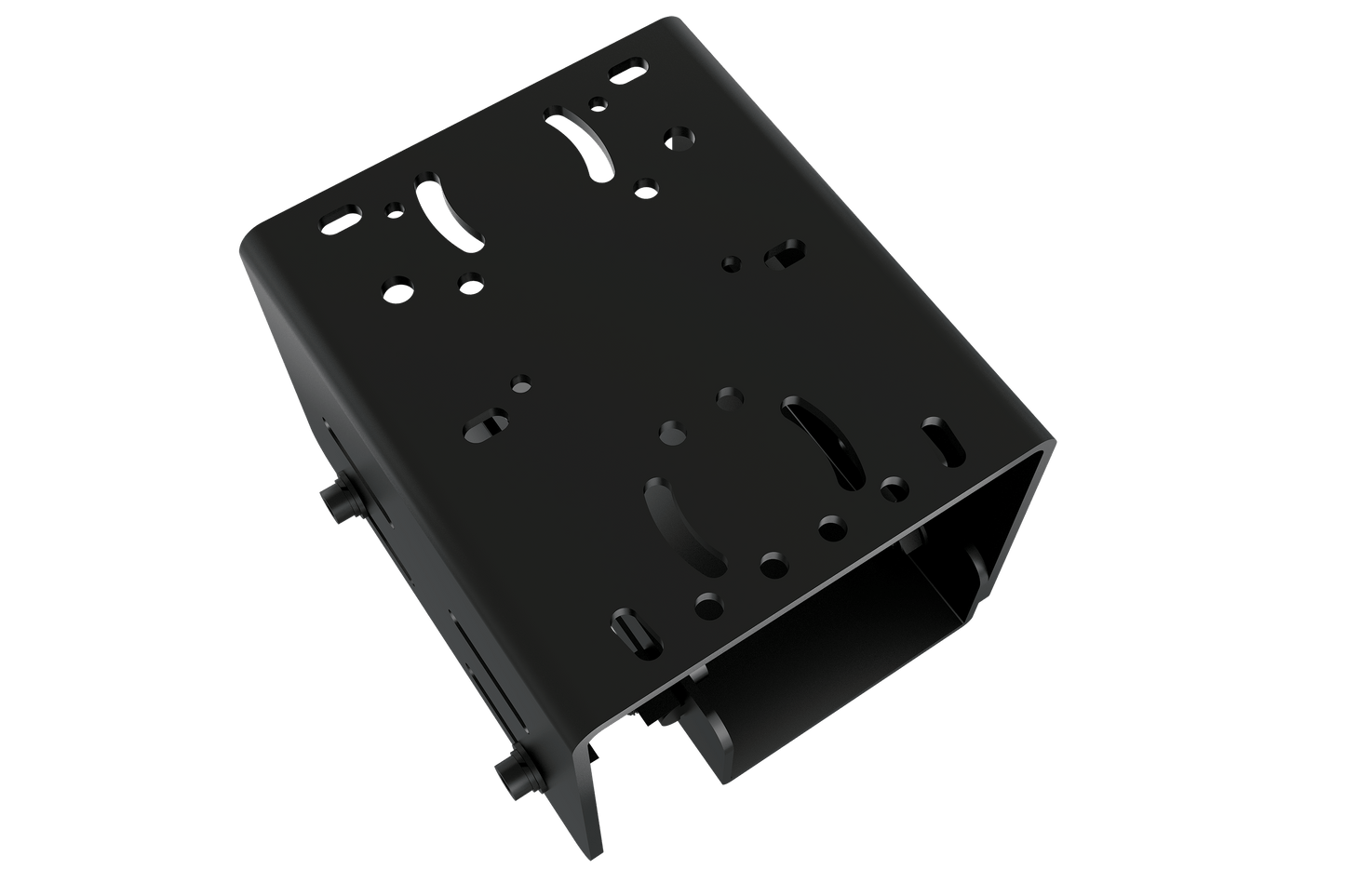

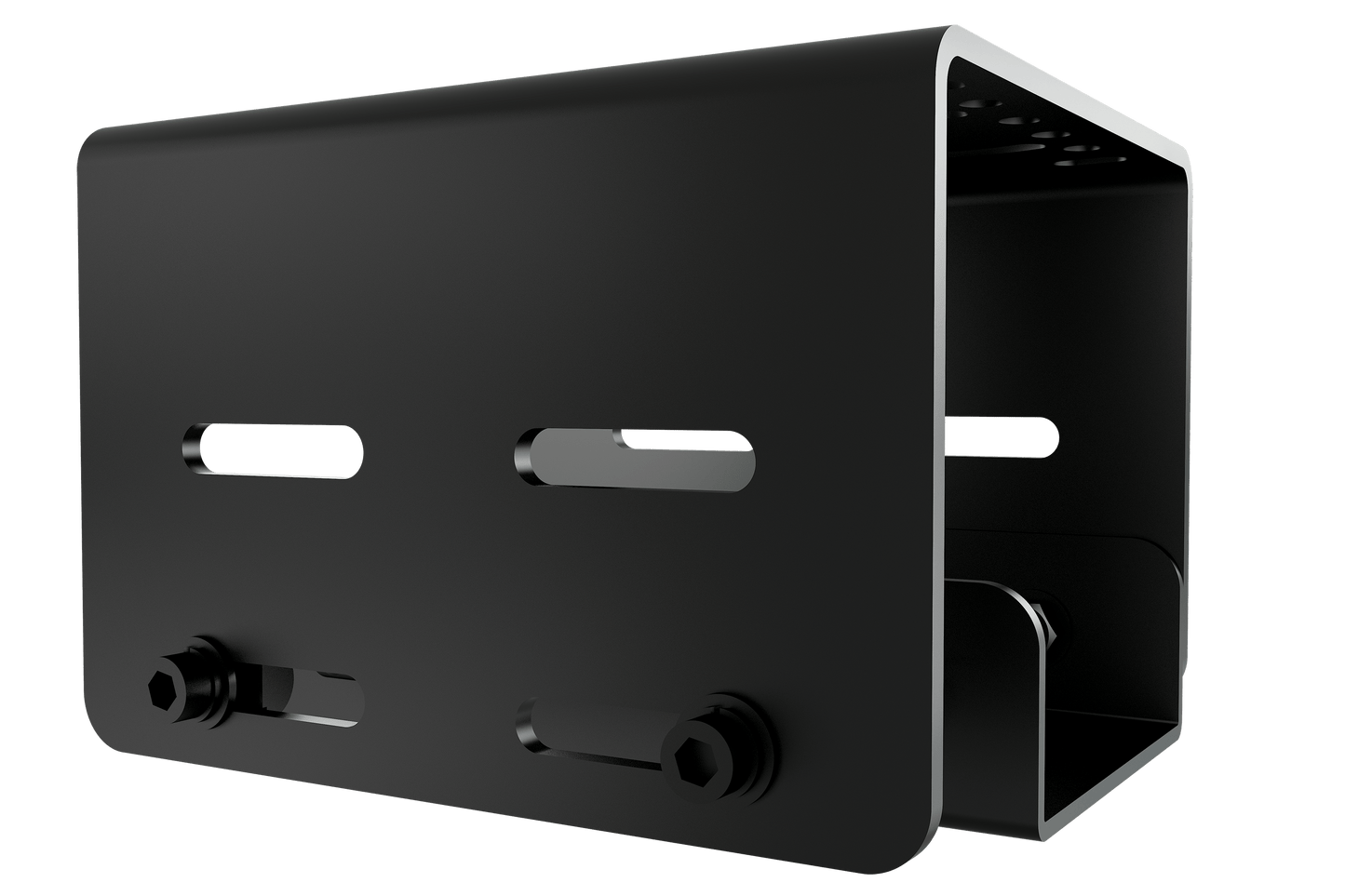

Adjustable Pedal Mount Features

Unique Bracket Design allows you to position the pedal low or in a high position and also slide for fine-tuning
Thick, no-flex Carbon Steel Construction
Pre-drilled mounting points for all major brand pedals

Optional Bucket or Recline Seat
Select from the range of high-quality Trak Racer seats


Specifications:
Includes all aluminium profiles and mounting gear
The main Chassis is a 6-Slot 80 x 40mm profile
Steering wheel uprights are 6-Slot 80 x 40mm profiles
Compatible Wheel Bases

Wheel Deck/Plate Compatibility
• Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
• Logitech G25, G27, G29, G920, G923
• Fanatec Elite, Clubsport, Podium DD1/DD2 and CSL DD
• AccuForce V1/V2
• SIMAGIC M10

Also, Flight/Heavy Equipment
• Logitech Flight Yoke System (by clamp)
• Logitech Flight Switch/Multi/Instrument Panels
• Logitech Heavy Equipment
Compatible Pedals

• Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (including Inverted Pedals)
• Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
• Trak Racer Loadcell Pro Pedals (Coming Soon)
• Heusinkveld Ultimate/Ultimate+, Sprint and Pro
• Logitech G29, G920, G923
• Meca Cup1-2, Meca Cup1-3, Clutch and Base Plate
• VRS DirectForce Pro Pedals
• HPP PRX 3P, JBV 2/3 Pedal System
• Simagic P2000-S100 Pedal Set
• BJ Sim Racing Steel Series, 1000psi Hydraulic
• DC Sim Racing DC3
• Sim Coaches P1-3
• Simtrecs ProPedal GT
• Asetek Hydraulic
• Velazquez Engineering PRO+ Hydraulic
• Simforge Mark-1
• 3DRAP Ngasa
• Protosimtech PT2
• OBP Pro Race V2 Sim Pedal System
• Simworx Pro Series
• WAVE IMPETUS
• Quaife Throttle Pedal and Brake
• Cube Controls Hydraulic
Also, Flight/Heavy Equipment
• Thrustmaster TPR: THRUSTMASTER PENDULAR RUDDER
• Thrustmaster T.Flight Rudder Pedals
• Logitech Flight Rudder Pedals
• Logitech Heavy Equipment
Contact us if your product is not listed

Compatible Shifters

• Fanatec ClubSport Shifter, SQ
• Thrustmaster TH8A, RSTSS, TSS+
• Prosim PSL Sequential Shifter
• Trak Racer Sequential Shifter Pro (Coming Soon)
• Heusinkveld SQ Shifter
• Logitech G Shifter
• DSD SQ Shifter
• Jinx Shifter - additional mount required
• Simworx Pro Series - additional mount required
• VNM Simulation Sequential Shifter
• Quaife PSL Sequential V2, Sequential and H Pattern - additional mount required
• Aiologs SQ Shifter
• BJ Sim Racing Shifter 3.0
• Frex H Pattern
Contact us if your Product is not listed - Handbrake mounts are also available
